This unit consist of Intelligent Controller and motorized ball valves,When leak detected,this unit can automatically shut off flow and Alarm,
Model: TOFINE-WAD801 or named TOFINE-WLD801

Valve Size: 1/4",3/8",1/2",3/4",1"
Valve body:  Brass, Stainless steel, Nickle plated brass,

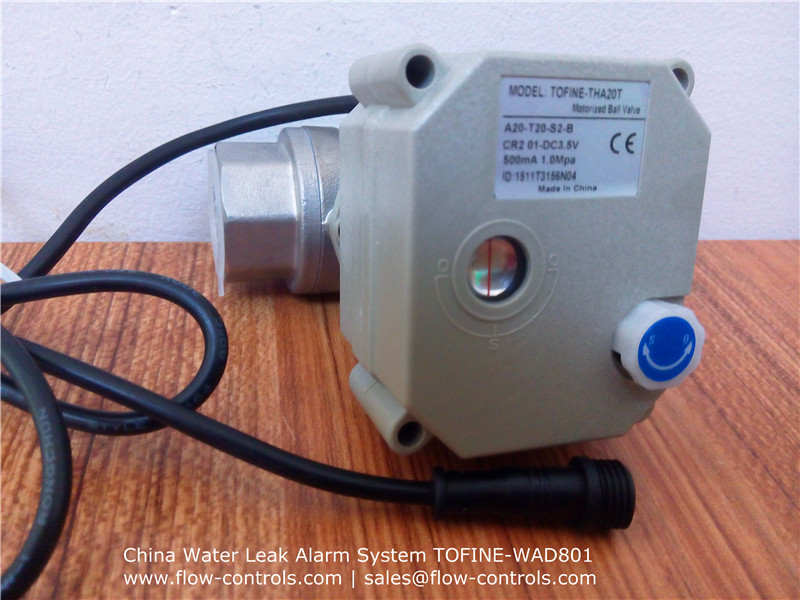

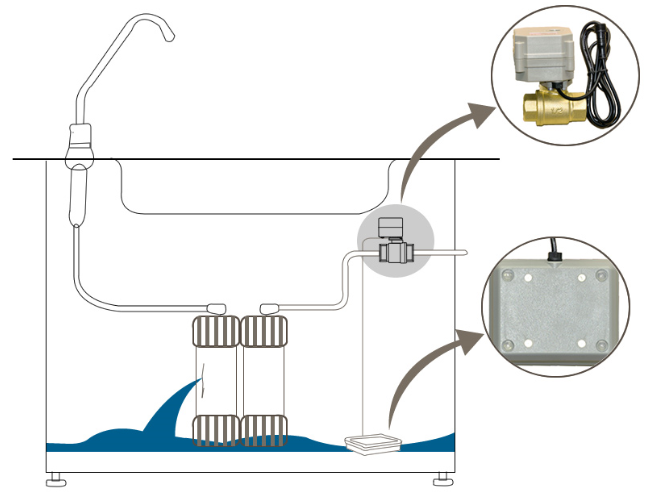

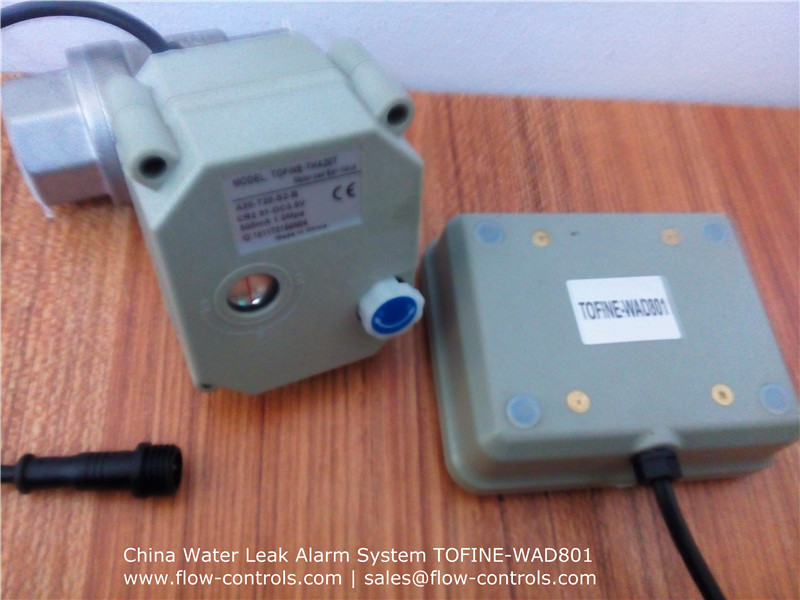

Automatic Shut off Motorized ball valves	Intelligent controller	Installation example

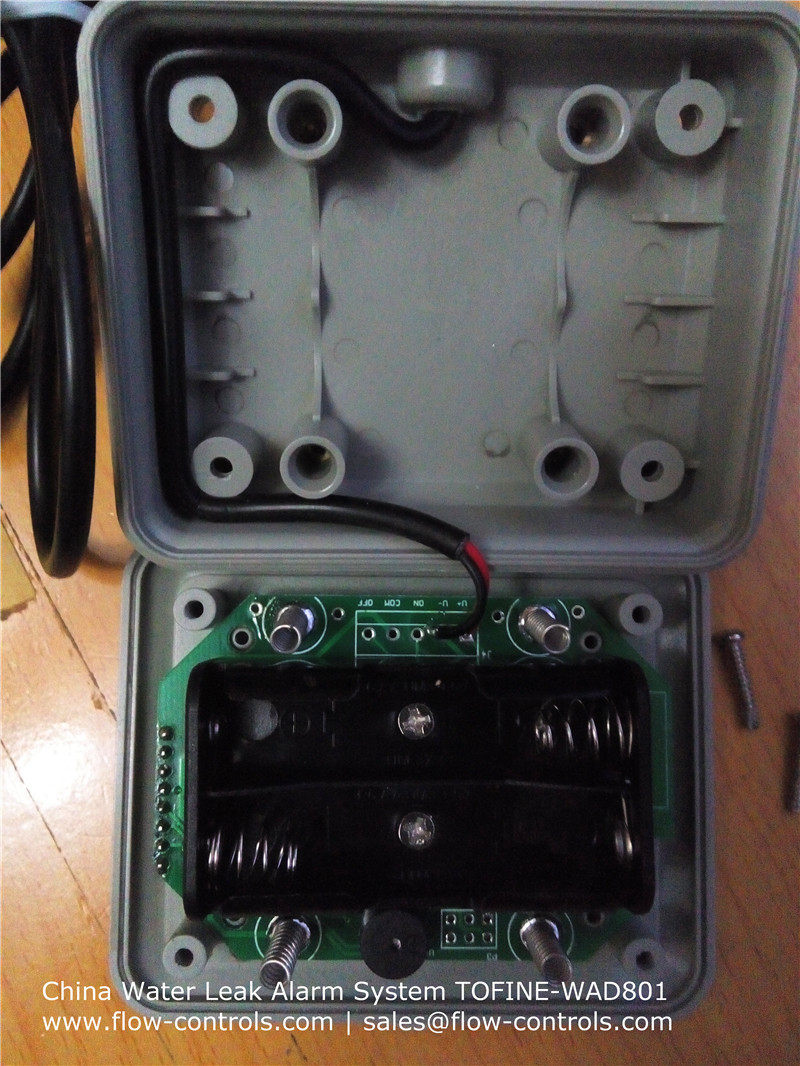

 Intelligent Controller Manual

Functions and Features

* Valves automatically close  when leakage ,and alarm.

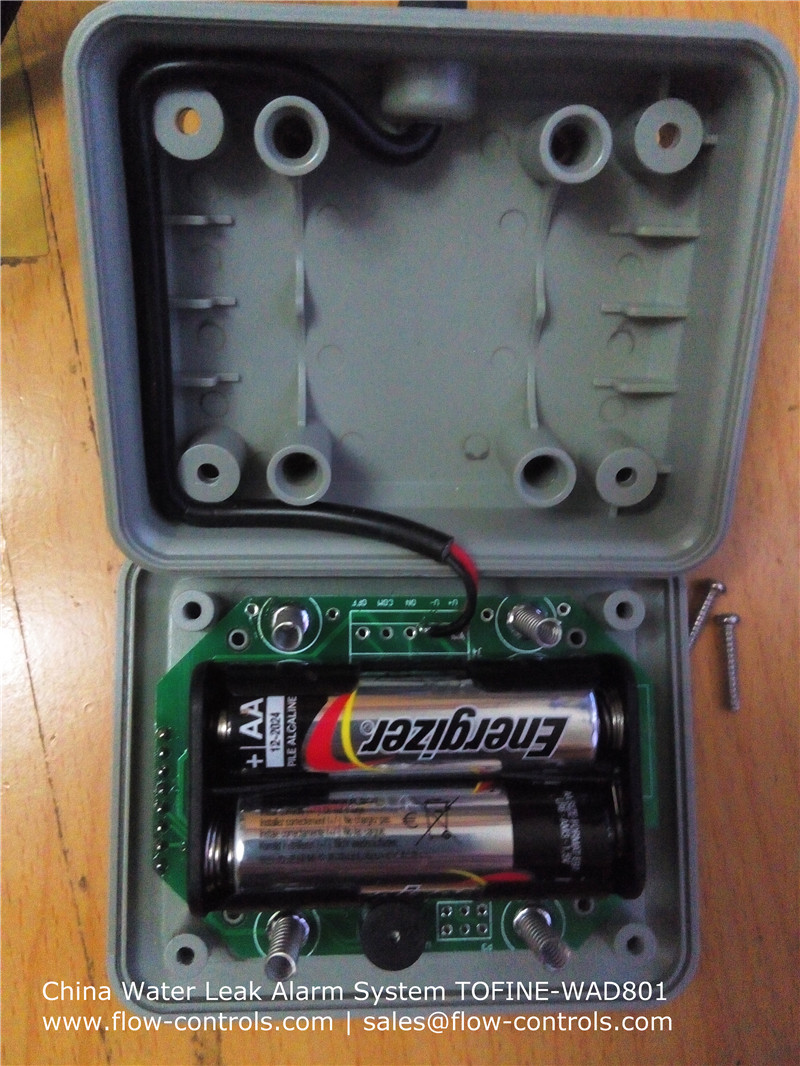

* Power Supply with 2 AA, 1.5V batteries.Provided by buyer because battery is not permitted to send via Express,

* when power is lower it will alarm, and valve close after eight hours,

* Controller panel has three keys ( power key, valve on key , valve off key ) and three indicator lights ( power indicator, on - off indicator)

* Easy to install.

* Suitable for water purifiers, protective faucet, washing machine, filter or water softener and other equipment as leakage protection.

* Sensing controller is fully sealed, moisture-proof design, improve the life of battery and stability of the product .

Instructions:
* Leakage detection:  Put the metal face of sensor controller down the place most likely leaky places, such as near the water purifier.
* Press On/Off button approx 3 seconds,valve close,
* Press Open button,valve Open,Controller gets into low power consumption state,Three indicative lights flashing each 10 seconds,
* After Leakage resolved,press Open,valve open,Controller gets into low power consumption state,
* #1 and 2 indicative lights flashing - Need to change the battery.
* #1 indicative light flashing - Low battery warning,the valve will be automatically close after 8 hours,

Technical parameters

Operating voltage: 3VDC (2 . AA, 1.5 V batteries)

Operating Current: Typically 0.015mA, max 300.0mA

Cable length: 1.0M

Connector Spec: BSP/NPT 1 / 2 " ,  BSP/NPT3/4'' , 1'' BSP/NPT

Ambient temperature: -20 degrees to 80 degrees C

Liquid temperature: 2??90? (Cold or Hot water both OK)
Withstand pressure: 1.0Mpa (10 Bar,150 psi)

Leakage detection:  Put the metal face of sensor controller down the place most likely leaky places, such as near the water purifier.

When any questions please contact us via Email: sales@flow-controls.com, Web: www.flow-controls.com
