Flow direction for 3-way Motorized ball valve
2014-04-04 21:54:38


If Motorized 3-way ball valves in Brass or Nickle plated brass,the valve will be vertical type and T bore as below,Model:TOFINE-THA20T

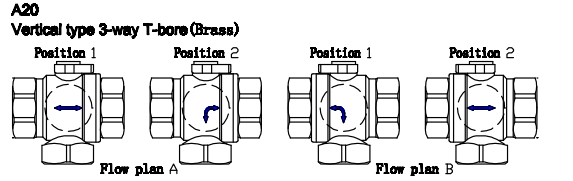

Vertical type 3-way Brass motorized ball valves,Manual override and visual indicator can be available when voltage less than 35V.

T-bore Flow direction



If the Motorized ball valve in Stainless steel,the valve will be Horizontal type and L or T bore as below,Model: TOFINE-THA100T,As far as our experience,L bore is very popular with automatic treatment system,please confirm which flow direction do you want before placing the orders,

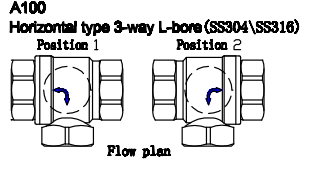

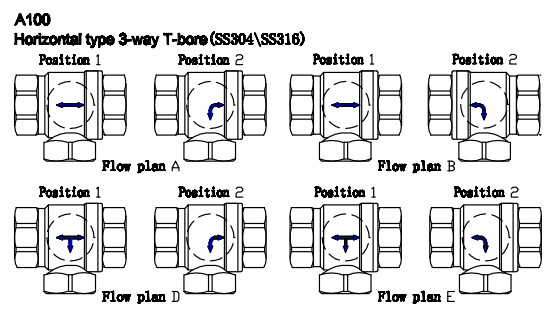

Horizontal type Stainless steel 3-way Motorized ball valves,no manual override,with visual indicator

L or T bore



Notes:

1) If 3-way valve body is the brass,the valve will be Vertical type and T-bore,if 3-way valve body is Stainless,the valve will be Horizontal type and L or T-bore,Please tell me what the valve body will be and what is the flow direction you prefer,thanks,
2) The price of 3-way Brass valve is much lower than 3-way Stainless valves,
3) So far the size of 3-way motorized ball valves is reduced port.

4) 3-way Brass or Stainless Motorized ball valve specifications available in different size,voltage and wiring diagrams,welcome to contact Amy via Email: sales@flow-controls.com ,www.flow-controls.com
