2 way Stainless 5-wire CR5 02 Auto-return with signal feedback

Home > IP67 on/off Electric ball valve Model: TOFINE-THA20T/100T > 2 way Stainless 5-wire CR5 02 Auto-return with signal feedback

Product Abstract:

Normally closed wiring with signal feedback

Model:

Product Description: Electrically operated ON/OFF type 2-way ball valves

Closing time – Approx 5 seconds.

Type : failsafe, normally closed with signal feedback wiring

Operating voltage : 220 – 240 VAC

Max.Operating Pressure : 10 bars

Max.Operating Temp : Approx 100 ℃

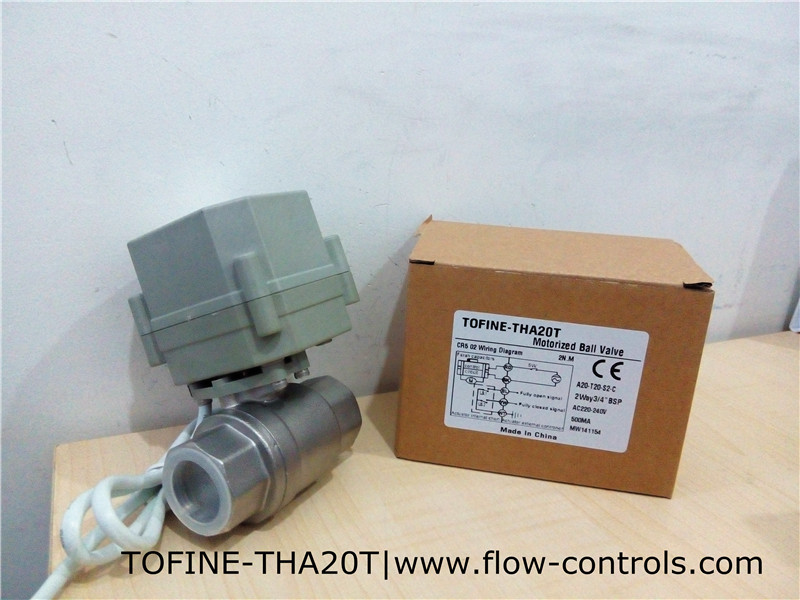

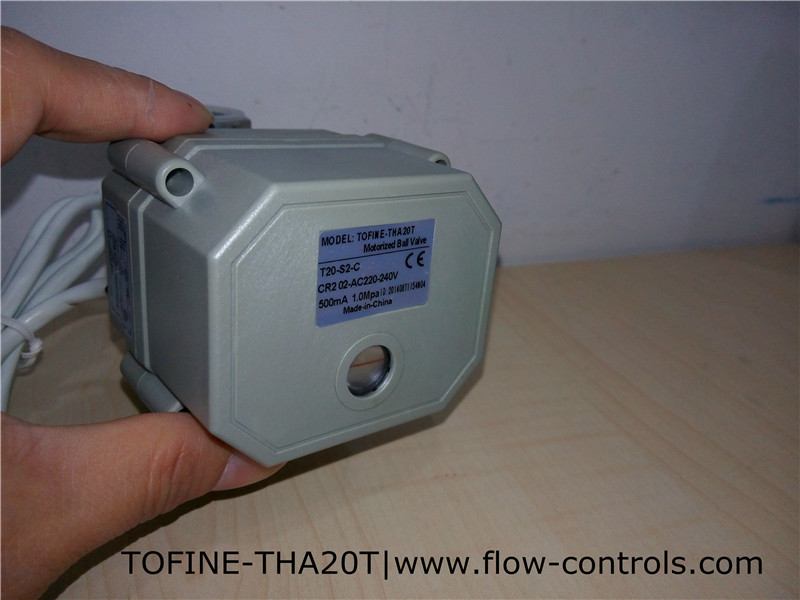

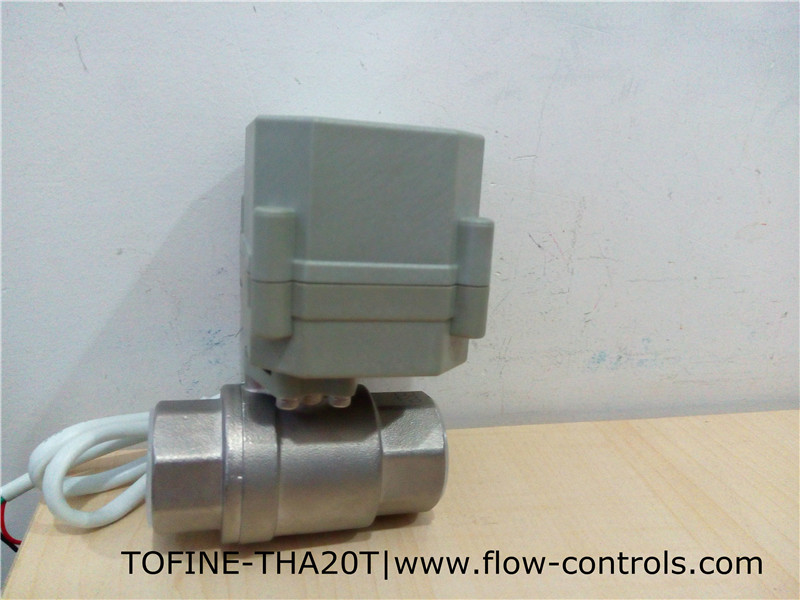

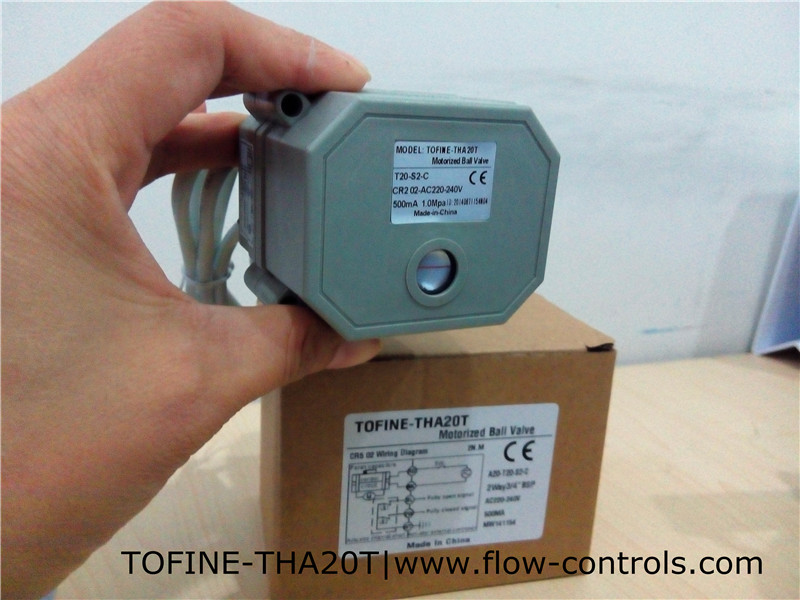

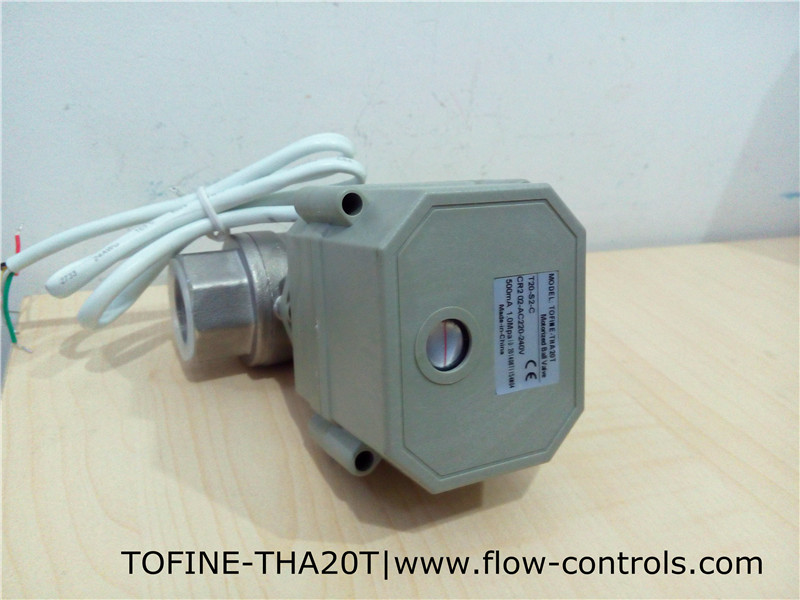

Model : TOFINE-THA20T

Wiring diagram : 5-Wire CR5 02,
Valve Body material : SS 304,

1’ or 3/4" BSP

Other specs are also available now please contact us via Email: sales@flow-controls.com, Web: www.flow-controls.com,
