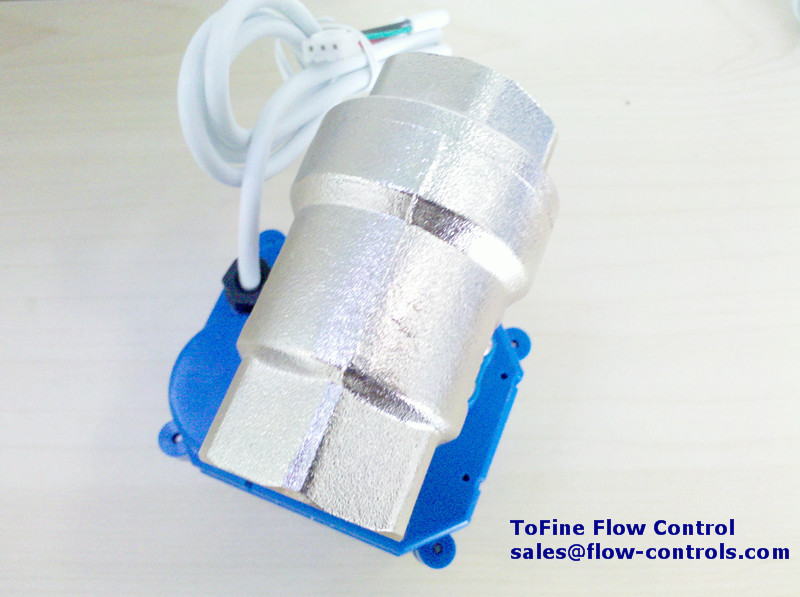

ToFine-KLD20S Automatic flow control ball valve
Product Name:
ToFine-KLD20S Automatic flow control ball valve
Product Abstract:
- Product Description
Automatic flow control valve also named motorized flow control ball valve,electric actuated ball valve,
2-way motorized ball valve
3/4" Full port NPT or BSP

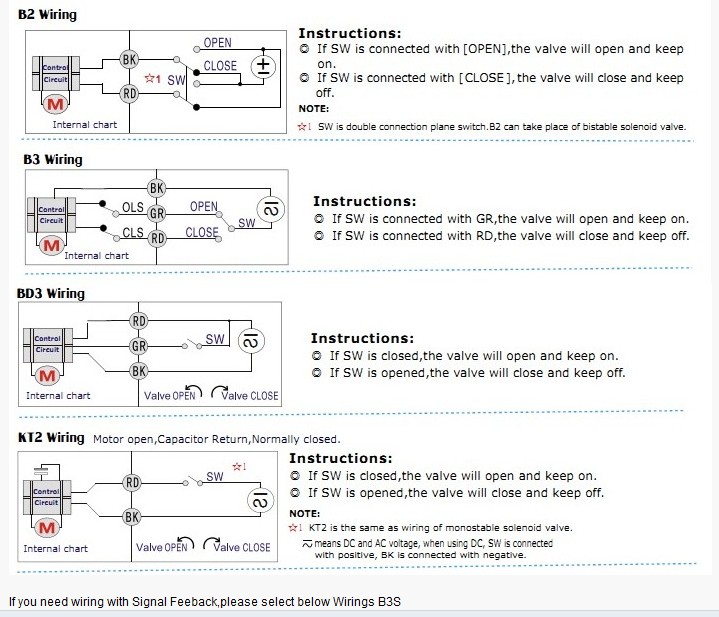

B3 Wiring
Stainless steel
110V
Wiring:B3
B3S Wiring:
1,If SW is connected with GR,the valve will open and keep on,
At this time,LS.1 is closed,giving signal of opening totally.
2.If SW is connected with RD,the valve will close and keep off,
At this time,LS.2 is closed,giving signal of closing totally.* The feedback signal is asynchronous with valve location.
It is earlier than the location.
Feedback Loading capacity: 1) DC36V <=0.2A 2) AC220V <=50mA
BD3S Wiring:
1,If SW is closed,the valve will open and keep on,
At this time,LS.1 is closed,giving siganal of opening totally.
2,If SW is opened,the valve will close and keep off.
At this time,LS.2 is closed,giving signal of closing totally.* The feedback signal is asynchronous with valve location.
It is eariler than the location.
Feedback loading capacity:1) DC36V <=0.2A 2)AC220V <=50mAAny questions,please contact us for more details.
