3 way Electric ball valve with manual override

  • Product Abstract:

  • 3 way motorized ball valve, Horizontal type, L type,BD3 Wiring
  • Price:55~62USD/pc
  • Model:Tofine-KLD20S-H


  • Product Description

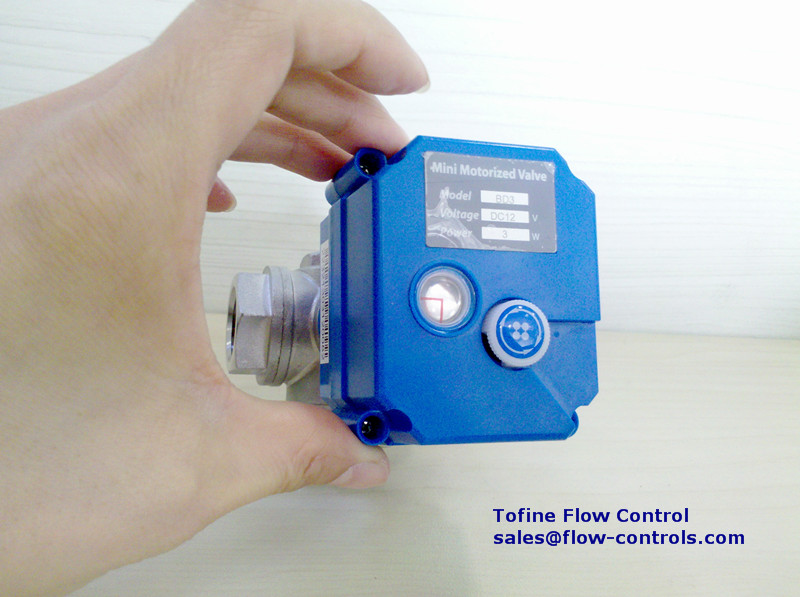

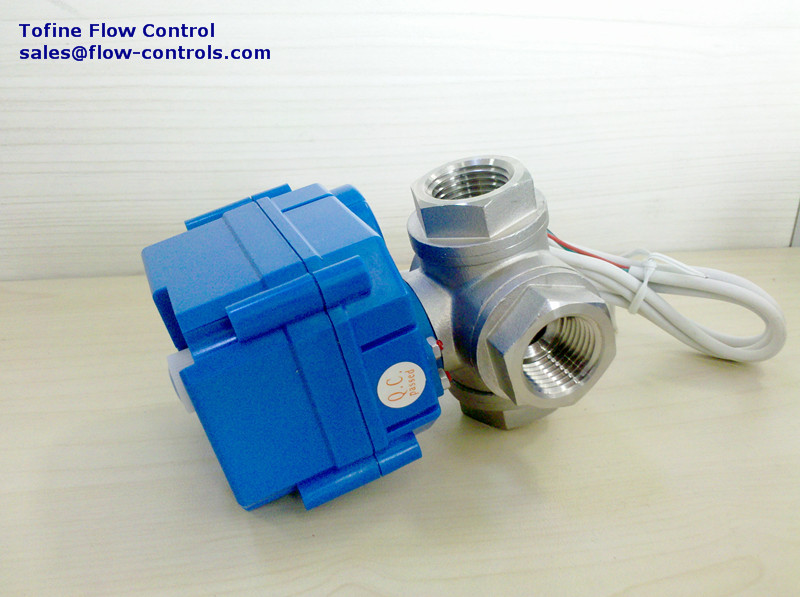

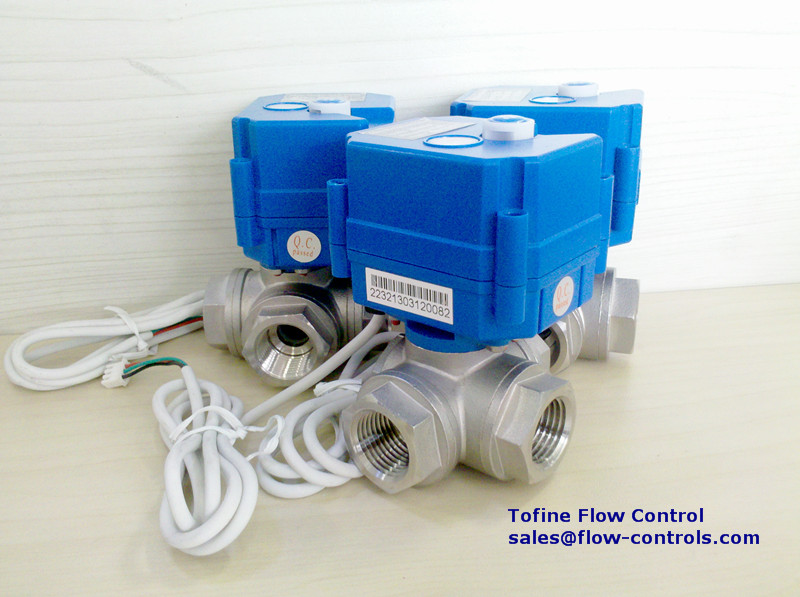

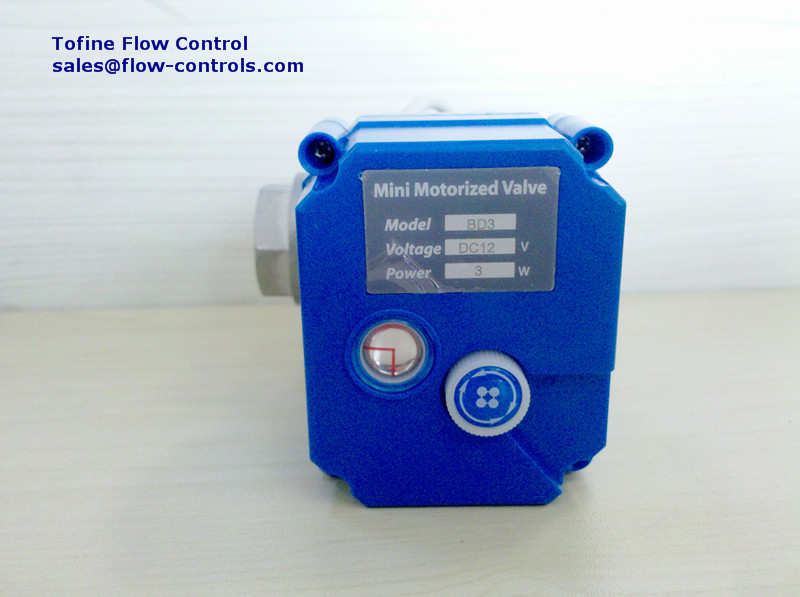

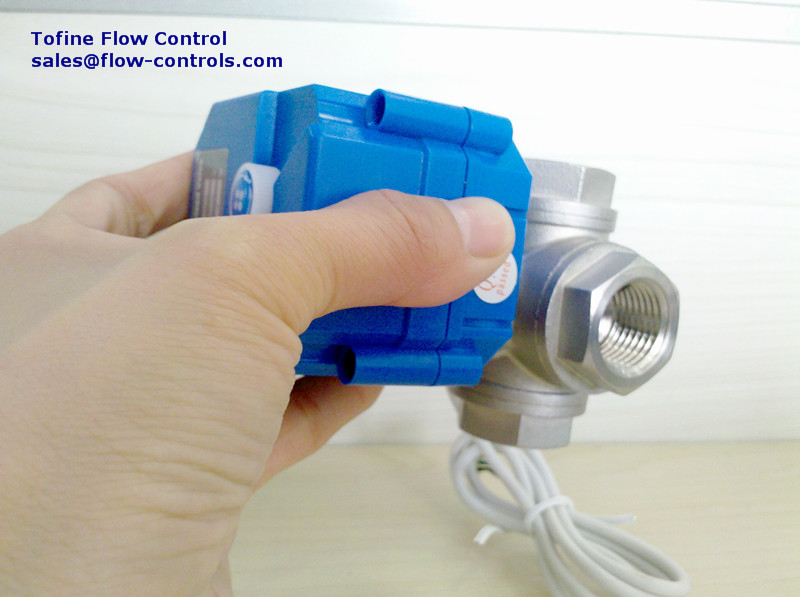

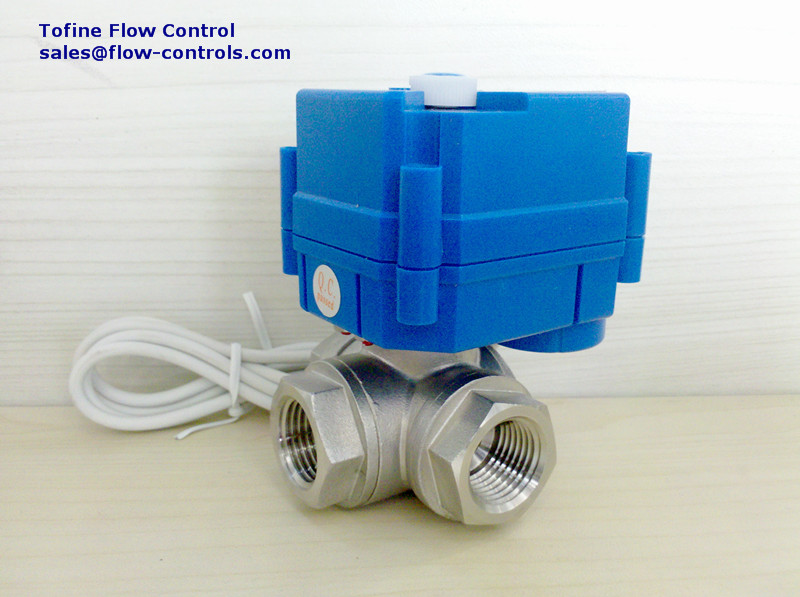

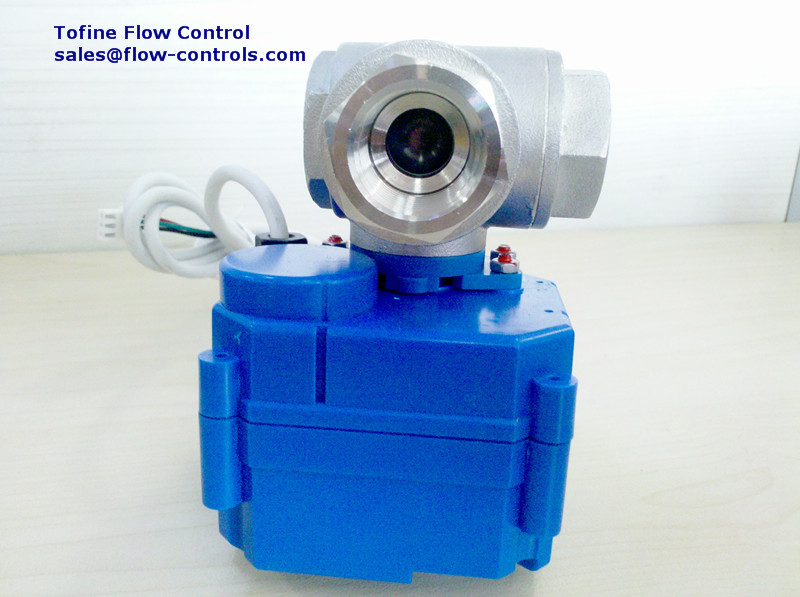

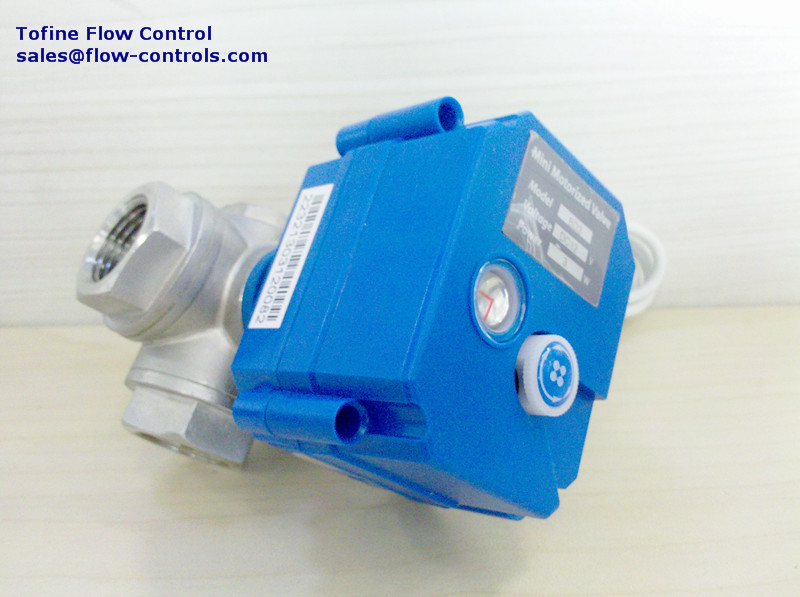

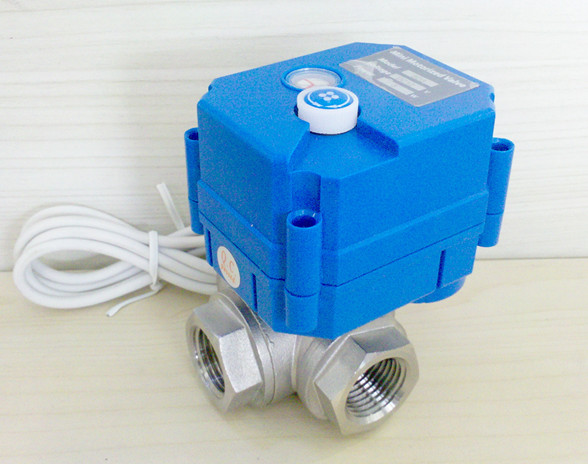

    3-way mini motorized ball valve also named 3-way electric actuated ball valve,The shown pictures are for below specifications,other specificiatons can also be available,please kindly visit below form.


    Horizontal type,

    Type L,

    3 wires BD3 Wiring

    DC12V

    Full port 1/2"  NPT or BSP thread connection

    Stainless steel 304

    Max Power:3 W



    Feature:
    1.Mini Dimension suits for small equipment
    2.Patented technology—floating seal structure
    3.Long service life — 70,000- 100,000 circles

    4.Low working current, suitable for battery driving
    5.IP67 Enclosure


    Application:
    1.HVAC
    2.Water treatment
    3.Chemical process
    4.Small equipment for automatic control
    5.Replacing solenoid valve, particularly when solenoid cannot work reliably





    T port will be added 2.4USD than L port,

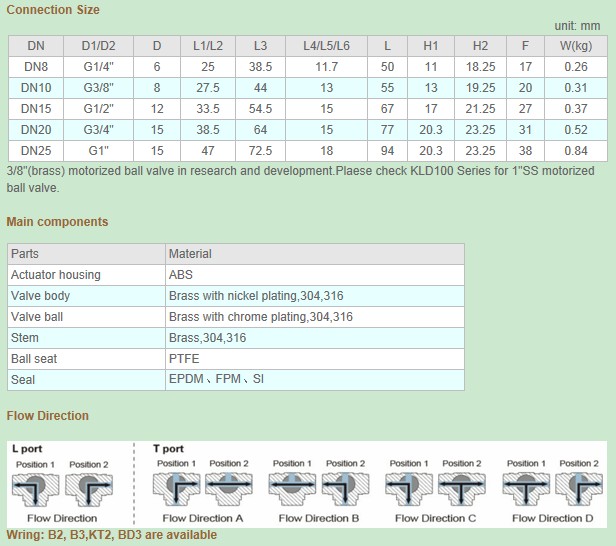

    For T port, 4 options can be available, we will provide Flow Direction B unless otherwise specified.

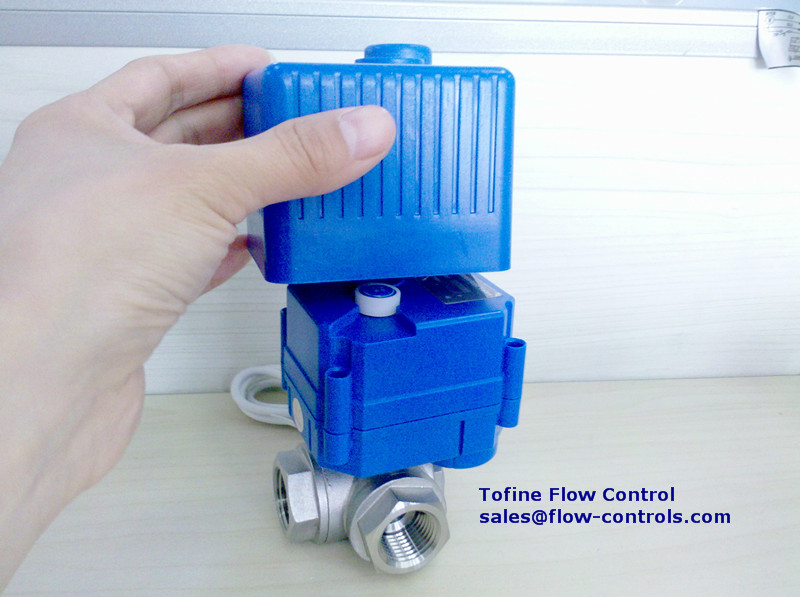

    If you need anti-UV cover(UV resistant case),we can provide you.

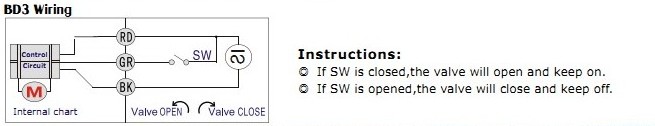

    BD3 Wiring :





    Other Wiring and specificaitons can also be available,please contact us for more details. Email:sales@flow-controls.com

    Horizontal type,
    L type,BD3 Wiring
