Above Attached file is for  the Wiring diagram,

If you need Visual indicator on the actuator,please feel free contact us.See below button.

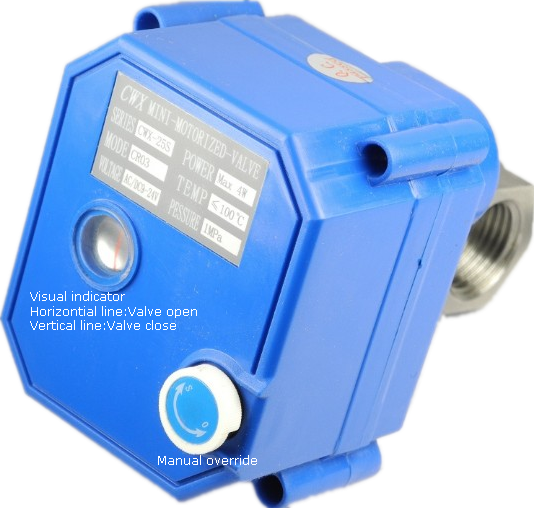

The Visual indicator can indicate the valve situation,when line is horizontial,the valve open,when vertical ,the valve close.

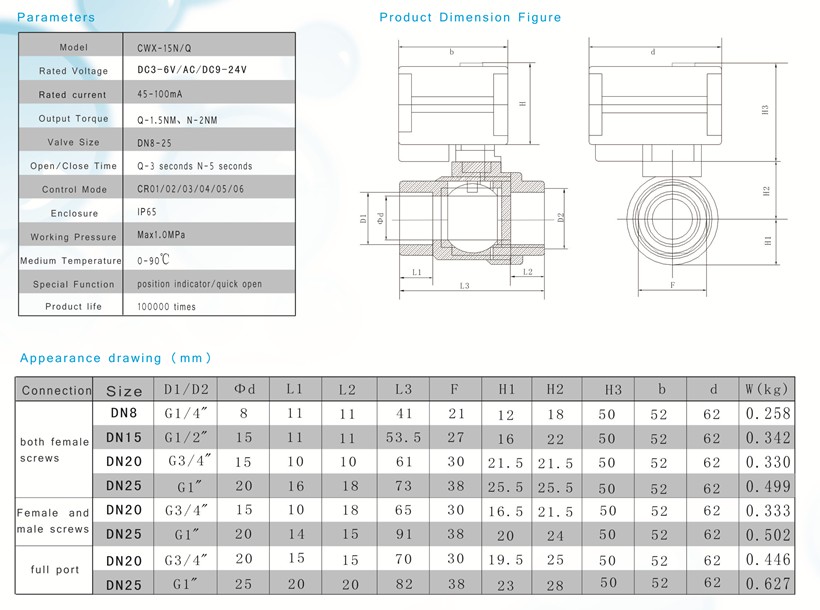

The Material drawing is below:

Specifications:

² Size: DN8-25 (1/4, 1/2, 3/4, and 1 inch)

² Material: Stainless, Brass,

² Voltage: DC3-6V, DC12V, DC24V, AC/DC 9-24V, DC5V, AC85-265V, DC3-6V

² Rated Current: 45-100 Ma, Power: Max 4W

² Output Torque: 1.5-2Nm,Opening/closing time:3-5 seconds.

² IP65 Enclosure

² Working pressure:1.0Mpa( 150 Psi)

² Medium temperature: 0-90 Centigrade

² BSP or NPT thread

Specifications:

² Size: DN8-25 (1/4, 1/2, 3/4, and 1 inch)

² Material: Stainless, Brass,

² Voltage: DC3-6V, DC12V, DC24V, AC/DC 9-24V, DC5V, AC85-265V, DC3-6V

² Rated Current: 45-100 Ma, Power: Max 4W

² Output Torque: 1.5-2Nm,Opening/closing time:3-5 seconds.

² IP65 Enclosure

² Working pressure:1.0Mpa( 150 Psi)

² Medium temperature: 0-90 Centigrade

² BSP or NPT thread

Advantage:

² Small/compact dimension and light weight, only 1/4 of traditional actuators(around 3 inches tall&wide), can be suitable for small equipment.

² Floating seal construction, no leakage,big flow capacity,at least 3 times bigger than normal,

² Anti-water hammer slow close function,

² Failsafe operation(auto return) can be avialable,the valve will normally closed when power cut off,and it only requires 2 wires to power it.

² Extra long life- Min 100, 000 times,the Lower price while mainting excellent working performance as the valves are directly sold from our factory

² Mounted any attitude,easy to install and replacement.

Application:

Will complement your existing solenoid valve as it will also suitable for dirty or contaminated water,viscous fluids,gravity feed application,rain water switch over units ,some corrosive fluides or low power/solar/battery operate circuits.Such as:

² Different Water control system

² Centre heating system

² Automated Leak Detection & Water Shut-off System

² Electric Brewing system

² Campus IC Card system

² Water saving system

² Water heater&boiler system

² Sprinkle system

² Automatic irrigation and water purification&filtration ststen

² HVAC
