How to wire TOFINE-THA20T electric actuated ball valves?
2014-03-17 15:53:05

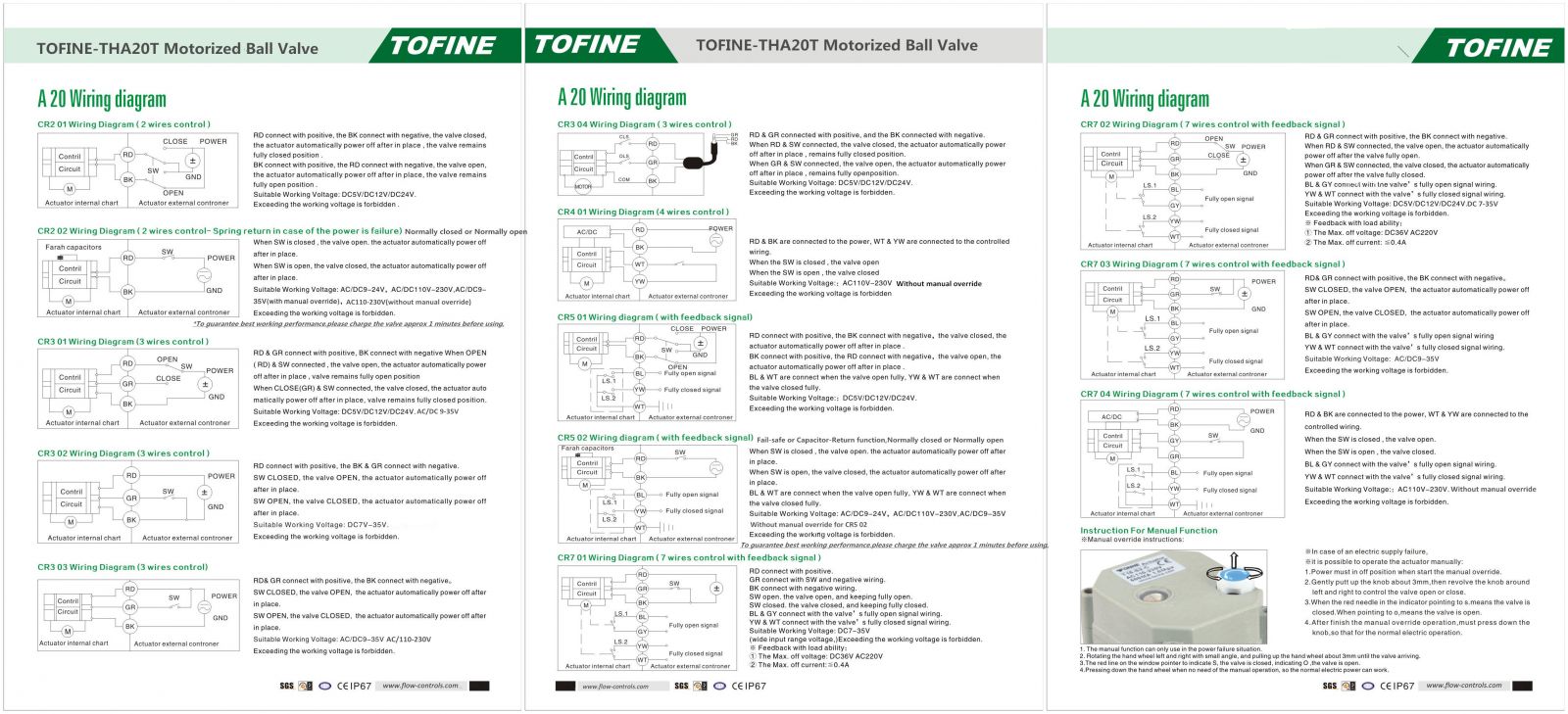

2-way Motorized ball valve TOFINE-THA20T wirings,

If you select DC5V version for TOFINE-THA20T motorized ball valves,
2-wire CR2 01
3-wire CR3 01,CR3 04
5-wire with signal feedback CR5 01
7-wire with signal feedback CR7 01,CR7 02
So far CR2 01 ,CR5 01 and CR7 02 is very popular,and Manual override and Visual indicator is available for DC5V TOFINE-THA20T valves.



If you select DC12V version for TOFINE-THA20T motorized ball valves.
2-wire CR2 01
2-wire CR2 02 (Auto-return function) the valve will normally closed or open when power off,if you need Auto-return with signal feedback,please select 5-wire CR5 02
3-wire CR3 01.CR3 02,CR3 03,CR3 04, Power on,Power off,the valve will stay in its current position.
5-wire with signal feedback CR5 01,CR5 02,
7-wire with signal feedback CR7 01,CR7 02,
So far CR2 01,CR2 02,CR3 03,CR5 01,CR5 02,CR7 02 is very popular,All the above wirings can be available for Manual override expect CR5 02.





If you select AC110-230V version
2-wire CR2 02 (Auto-return function), the valve will normally closed or open when power off,if you need Auto-return with signal feedback,please select 5-wire CR5 02
3-wire CR3 03 Power on,Power off,the valve will stay in its current position when power off.
5-wire CR5 02
7-wire CR7 04
So far CR2 02,CR5 02,CR3 03 is very popular,


24V is also available,please contact us for more details, sales@flow-controls.com, www.flow-controls.com
