How to choose the right electric ball valves
2013-11-25 23:47:44




Please kindly choose motorized ball valve Size,Material and Voltage you want so that we can recommend you best suitable model,
About model name,part number and label info,please click:
http://www.flow-controls.com/news/What-the-part-number-Label-will-be-for-TOFINE-valves-57.html

Size:  1/4 (DN8), 1/2"(DN15),3/4"(DN20),1"(DN25),1-1/4"(DN32),1-1/2"(DN40),2"(DN50)
Material:   Brass,Stainless steel,Nickel plated brass,PVC
Voltage:     DC5V,DC12V,DC24V,AC24V,AC110-230V

1) What is the main difference for the full bore and reduced bore?
Full port: External diameter: 25MM, Actual inner diameter: 25MM,you never lose any water flow or pressure.
Reduced port: Connection diameter: 25mm,Actual inner diameter:20MM,

2) What is the main difference for the BSP  and NPT thread connection?
NPT: Always used for USA or Canada pipe system
BSP: Always used for European or Asia pipe system
The difference is very slightly,some clients ignore it,some clients are strict with it.

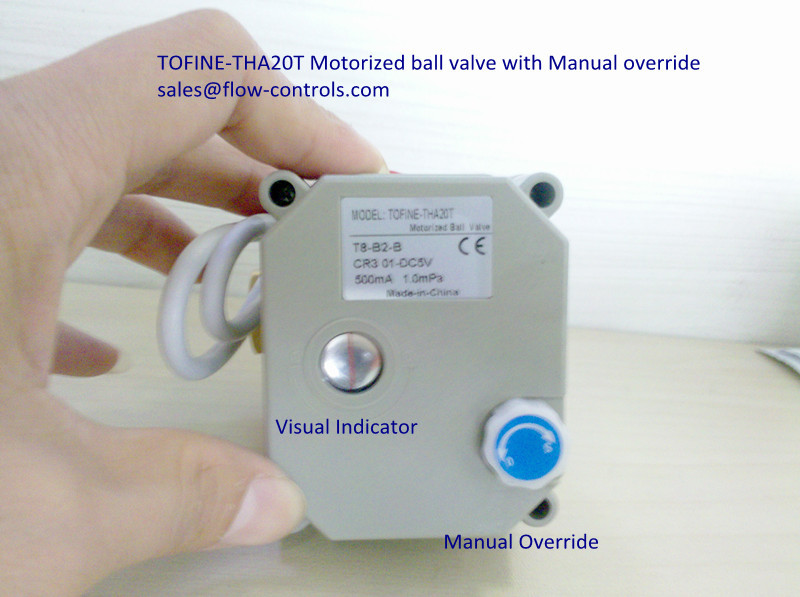

3) What is  Manual override and valve open/close visual indicator function?
Manual override function is standard for use in the event of power failure,and this function is only permitted to use when power off.
Valve open/close visual indicator function can indentify the valve open or close via the black line on the acuator.

Please click here to contact our experts to get more informaton and FREE QUOTE
