ToFine-CWX15Q CR03 motorized ball valve

  • Product Abstract:

  • ToFine-CWX15Q, 3 wires Wiring. DC9-24V
  • Price:28~39USD
  • Model:ToFine-CWX15Q


  • Product Description

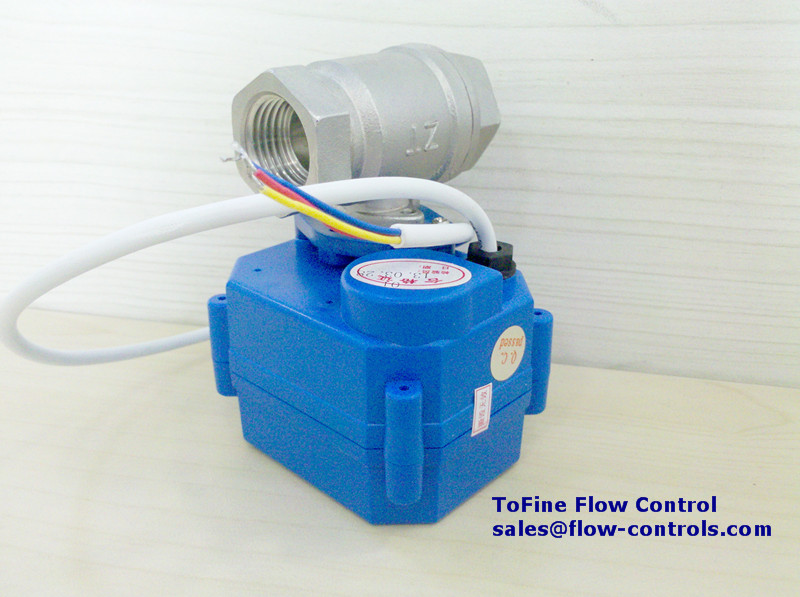

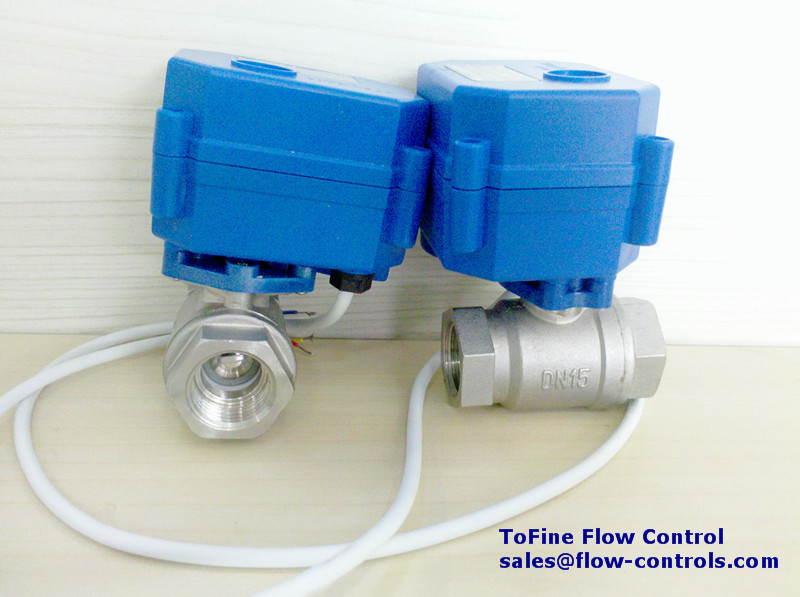

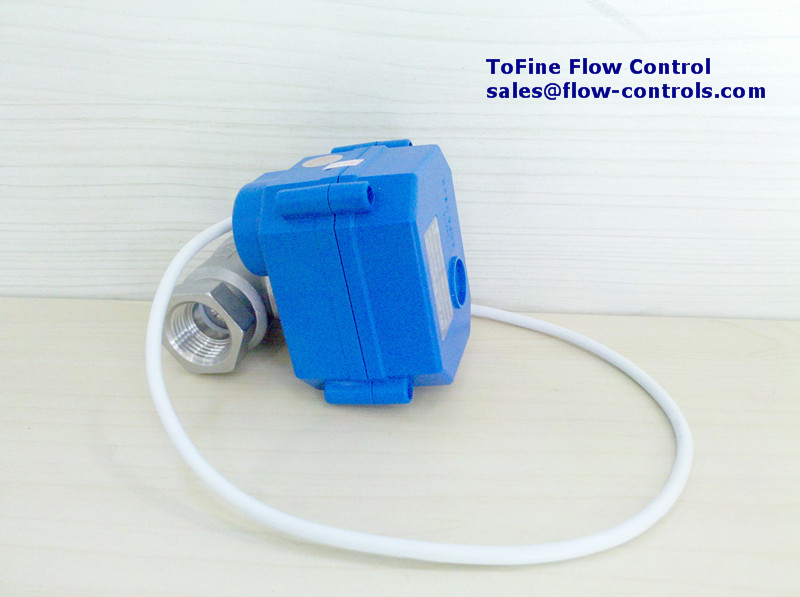

    Motorized ball valve also named electric actuated ball valve,The pictures are for below specificaitons,other specificaitons are also be available,please kindly visit below form.


    Size:Full port 1/2 (15mm)
    Material: Stainless steel
    Voltage:DC12V
    Wiring:3 wires CR03

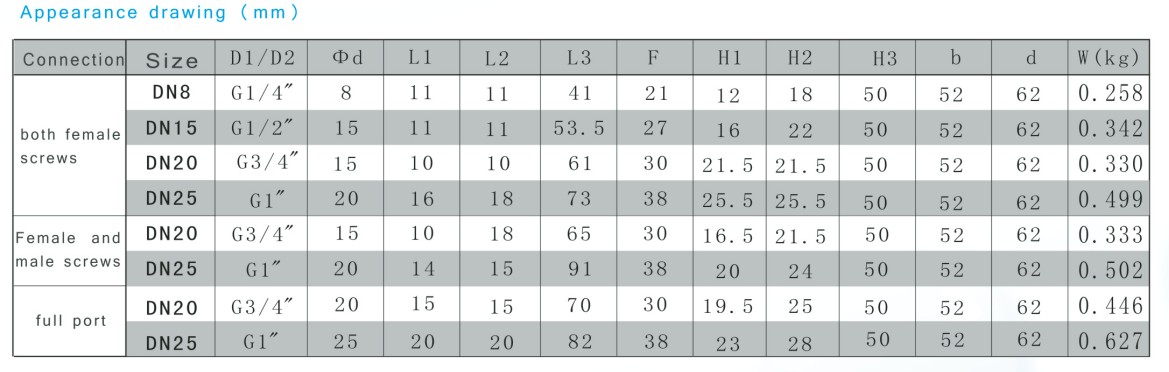

    Specifications:

        Size   Material Torque Working pressure Temperature Open/Close time Serving life Enclosure Power         Voltage
    1/2",3/4',1" Brass,Stainless steel 304 1.5-2.0 Nm 1.0Mpa <=100 degree celsius 3~5 seconds 100,000 times IP65 Max 5 W 5V,12V,24V,85~265V



    Feature:

    1) Compact design and light weight: It is considered "mini",because it only measures approx 3 inches wide by3 inches tall ,and it only weights approx 0.3~0.5KG/pc.

    2) High performance&price ratio: It is consdered "economic" because it only cost approx 25~48USD for the high quality similar to Danfoss or other famous brand in international worldwide,also, you save more money because you are buying from our factroy directly,and we would even accept ONE sample only for your evaluation.

    3) Application&Design: Mini electric ball valve is electrically operated valve used in various automatic water treatment system,water leak alarm & shut off system,it is made of two parts,Electric actuator+Ball valve,the valve will open&close when voltage applies&remove to the motor.
