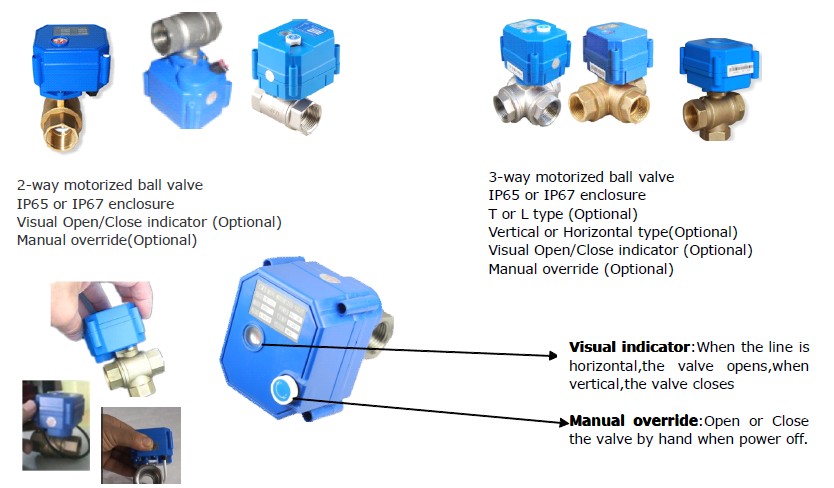

Mini 2 or 3 port motorized&electric ball valve for automatic water treatment

  • Product Abstract:

  • Small&compact design and light weight,very suitable for small equipment.
  • Price:$18-$58
  • Model:TOFINE-CWX15Q

  • Product Description



    ² Size: DN8-25 (1/4, 1/2, 3/4, and 1 inch)

    ² Voltage: DC3-6V, DC12V, DC24V, AC/DC 9-24V, DC5V, AC85-265V, DC3-6V

    ² Material: Brass ,Stainless,

    ² Working pressure:1.0 MPA (10 Bar,150 PSI)

    ² Control:on/off,Angle/rotation:90 degrees.

    ² Open/Close time:around 3-5 seconds,

    ² Servicing life:100000 times

    ² Wiring:2-5 wires


    ² Different Water control system

    ² Centre heating&Cooling water system,HVAC,

    ² Automated Leak Detection & Water Shut-off System

    ² Electric Brewing system,

    ² Solar heating system,

    ² Campus IC Card system,Water saving system

    ² Water heater&boiler system

    ² Automatic irrigation&water purification&filtration system,Sprinkle system


    ² Small/compact dimension and light weight, only 1/4 of traditional actuators(around 3 inches tall&wide), can be suitable for small equipment.

    ² Replacing solenoid valve,particularly when solenoid valve can not work reliably.

    ² Low working current,suitable for battery driving.

    ² Floating seal construction, no leakage,suitable for high-fouling or long time no action situation.

    ² Anti-water hammer slow close function,

    ² Failsafe operation(auto return) can be available,the valve will normally closed when power cut off,and it only requires 2 wires to power it.Without the need for costly and bulky spring return electric actuators as traditionally used,When power is lost, a super capacitor provides the power needed to return the ball valve to its factory set resting position (either open or closed).

    ² Extra long life- Min 100, 000 times,

    ² Mounted any attitude,easy to install and replacement.
